| CONTAINER SPECIFICATIONS - AIR |
| |
 |
Lower
Deck
Container-IATA
Type
8D-IATA
Prefix:
APA-APA:
LD-2 |
| |
|
| |
Maximum Gross Weight
1,225 kg / 2,700 lb
Volume
3.4 m3 / 120 ft3
Tare
60 kg / 132 lb
External Dimensions
(L x W x H)
1,194 mm x 1,534 mm x 1,626 mm
(47 in x 60.4 in x 64 in)
Aircraft Accepted For
777, 767 |
 |
|
| |
|
| |
|
|
Lower
Deck
Container-IATA
Type
8-IATA
Prefix:
AK-ATA:
LD-3 |
| |
|
| |
Maximum Gross Weight
1,588 kg / 3,500 lb
Volume
4.53 m3 / 160 ft3
Tare
70 kg / 154 lb
External Dimensions
(L x W x H)
1,562 mm x 1,534 mm x 1,626 mm
(61.5 in x 60.4 in x 64 in)
Aircraft Accepted For
DC10-30 Freighter, DC10, 747, 777, 767 |
 |
|
| |
|
| |
|
|

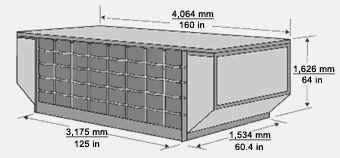

Lower
Deck
Container-IATA
Type
6-IATA
Prefix:
ALF-ATA:
LD-6 |
| |
|
| |
Maximum Gross Weight
3,175 kg / 7,000 lb
Volume
6.94 m3 / 245 ft3
Tare
180 kg / 397 lb
External Dimensions
(L x W x H)
3,175 mm x 1,534 mm x 1,626 mm
(125 in x 60.4 in x 64 in)
Aircraft Accepted For
747, 747F, L1011 |
 |
|
| |
|
| |
|
|

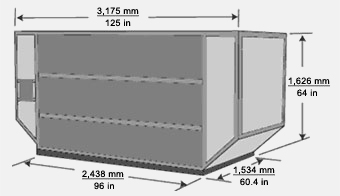

Lower
Deck
Container-IATA
Type
6B-IATA
Prefix:
AQ-ATA:
LD-8 |
| |
|
| |
Maximum Gross Weight
2,449 kg / 5,400 lb
Volume
6.94 m3 / 245 ft3
Tare
120 kg / 264 lb
External Dimensions
(L x W x H)
2,438 mm x 1,534 mm x 1,626 mm
(96 in x 60.4 in x 64 in)
Aircraft Accepted For
777, 767 |
 |
|
| |
|
| |
|
|

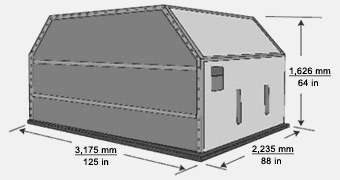

Container-IATA
Type
5-IATA
Prefix:
AAP-ATA:
LD-9 |
| |
|
| |
Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
9.91 m3 / 350 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For
747, 747F, L1011 |
 |
|
| |
|
| |
|
|

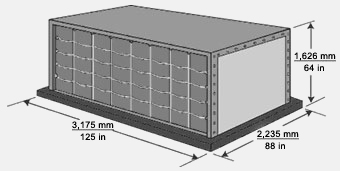

Upper
Deck
Container-IATA
Type
5-IATA
Prefix:
AAK-ATA:
LD-7 |
| |
|
| |
Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
9.91 m3 / 350 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For
N/A |
 |
|
| |
|
| |
|
|

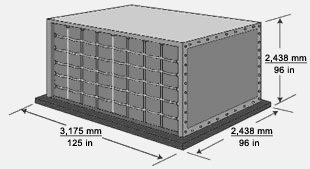

Main
Deck
Container-IATA
Type
2/2Q-IATA
Prefix:
AMA |
| |
|
| |
Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
17.16 m3 / 606 ft3
Tare
260 kg / 572 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 2,438 mm
(125 in x 96 in x 96 in)
Aircraft Accepted For
747F |
 |
|
| |
|
| |
|
|

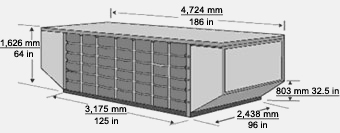

Lower
Deck
Container-IATA
Type
2BG-IATA
Prefix:
AMU |
| |
|
| |
Maximum Gross Weight
6,033 kg / 13,300 lb
Volume
13.7 m3 / 480 ft3
Tare
200 kg / 440 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 1,626 mm
(125 in x 96 in x 64 in)
Aircraft Accepted For
747, 747F |
 |
|
| |
|
| |
|
|

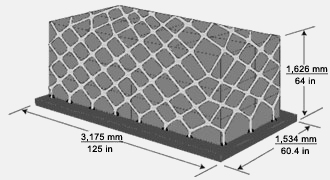

Lower
Deck
Pallet
with
Net-IATA
Type
6-IATA
Prefix:
PL |
| |
|
| |
Maximum Gross Weight
3,175 kg / 7,000 lb
Volume
6.94 m3 / 245 ft3
Tare
90 kg / 198 lb
External Dimensions
(L x W x H)
3,175 mm x 1,534 mm x 1,626 mm
(125 in x 60.4 in x 64 in)
Aircraft Accepted For
DC10, DC10-30 Freighter, 747, 777 |
 |
|
| |
|
| |
|
|

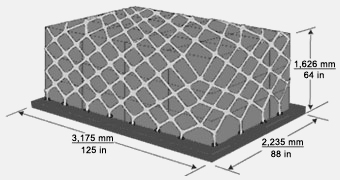

Pallet
with
Net-IATA
Type
5-IATA
Prefix:
PA |
| |
|
| |
Maximum Gross Weight
4,626 kg / 10,200 lb
Volume
9.91 m3 / 350 ft3
Tare
120 kg / 264 lb
External Dimensions
(L x W x H)
3,715 mm x 2,235 mm x 1,626 mm
(125 in x 88 in x 64 in)
Aircraft Accepted For
DC10-30 Freighter, DC10-30
747, 747F, 777, 767-300 |
 |
|
| |
|
| |
|
|

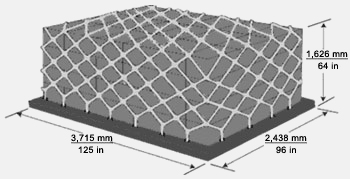

Pallet
with
Net-IATA
Type
2WA-IATA
Prefix:
PM |
| |
|
| |
Maximum Gross Weight
5,035 kg / 11,100 lb
Volume
15.8 m3 / 557 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,715 mm x 2,438 mm x 1,626 mm
(125 in x 96 in x 64 in)
Aircraft Accepted For
DC10-30, Freighter, DC10-30, 747, 747F |
 |
|
| |
|
| |
|
|

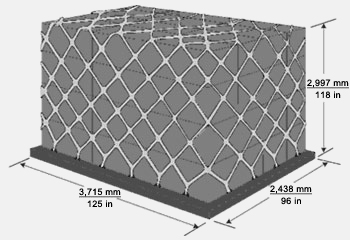

Main
Deck
Pallet
with
Net-IATA
Type
2H-IATA
Prefix:
PM |
| |
|
| |
Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
21.16 m3 / 747 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,715 mm x 2,438 mm x 2,997 mm
(125 in x 96 in x 118in)
Aircraft Accepted For
DC10-30 Freighter, 747F |
 |
|
| |
|
| |
|
|

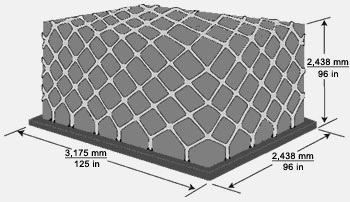

Main
Deck
Pallet
with
Net-IATA
Type
2/2Q-IATA
Prefix:
PM |
| |
|
| |
Maximum Gross Weight
6,804 kg / 15,000 lb
Volume
17.16 m3 / 606 ft3
Tare
130 kg / 287 lb
External Dimensions
(L x W x H)
3,175 mm x 2,438 mm x 2,438 mm
(125 in x 96 in x 96 in)
Aircraft Accepted For
DC10-30 Freighter, 747F |
 |
|
| |
|
| |
|
|

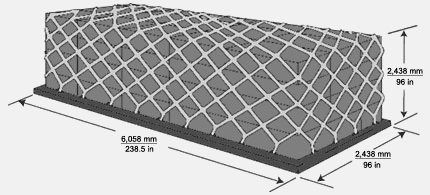

Main
Deck
Pallet
with
Net-IATA
Type
1/1S-IATA
Prefix:
PG |
| |
|
| |
Maximum
Gross
Weight
13,608
kg /
30,000
lb
Volume
33.25 m3
/ 1,174
ft3
Tare
400 kg /
882 lb
External
Dimensions
(L x W x
H)
6,058 mm
x 2,438
mm x
2,438 mm
(238.5
in x 96
in x 96
in)
Aircraft
Accepted
For
DC10-30
Freighter,
747F |
 |
|
| |
|
|
|
|
|
